Identifying Transformations

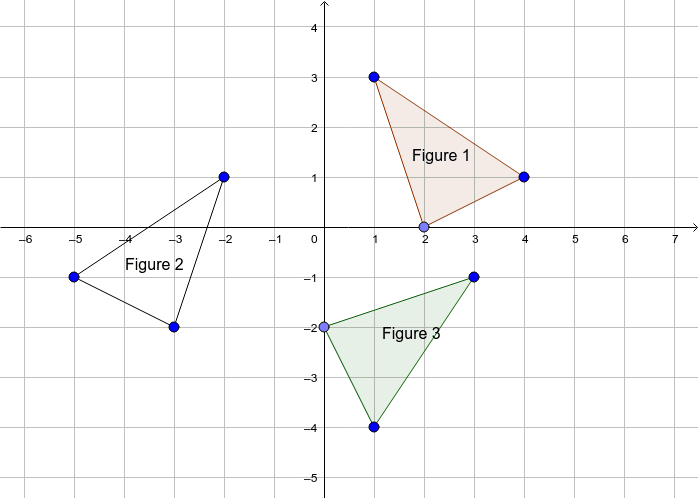

Use the graph below to answer questions 1-3

1. Which sequence of transformations can transform Figure 1 onto Figure 2?

Reflecting over the y axis and translating left one unit and down two units. Translating using (x-3, y-2) Reflecting over the x axis and rotating 180 degrees clockwise around the origin. Rotating 90 degrees counterclockwise around the origin and translating left one unit and down two units.

2. What transformation(s) will transform Figure 1 onto Figure 3? Choose ALL correct answers.

Reflecting over the y axis Rotating 180 degrees clockwise around the origin. Rotating 270 degrees counterclockwise around the origin. Rotating 90 degrees clockwise around the origin.

3. Which images are congruent?

Figure 1, Figure 2, and Figure 3 are congruent. Only Figure 1 and Figure 3 are congruent. None of the Figure are congruent. Only Figure 1 and Figure 2 are congruent. Only Figure 2 and Figure 3 are congruent.

Use the graph below to answer questions 4-6

4. Which sequence of transformations can transform Figure 1 onto Figure 2?

Rotating 90 degrees clockwise and reflecting across the x axis. Reflecting over the y axis and translating down one unit. Rotating 90 degrees clockwise around the origin. Reflecting over the x axis and translating using (x, y-1)

5. Which sequence of transformations can transform Figure 1 onto Figure 3

Rotating 90 degrees clockwise around the origin and reflecting over the y axis. Rotating 180 degrees clockwise around the origin and translating right one unit and up three units. Rotating 90 degrees counterclockwise around the origin. Reflecting over the y axis and translating down one unit.

6. Which images are congruent?

Only Figure 1 and Figure 2 are congruent. Only Figure 2 and Figure 3 are congruent. Figure 1, Figure 2, and Figure 3 are congruent. Only Figure 1 and Figure 3 are congruent. None of the Figure are congruent.

7. Reflect [math]\Delta ABC[/math] over the line x=1 and then translate using (x+1, y-2).

List the coordinates of the final image.
